Ring Die Feed Pellet Mill SZLH350

Model

SZLH350

Capacity

2-6t/h

Main motor power

55kw

Conditioner power

2.2kw

Feeder power

1.5kw

Ring die diameter

350mm

Send Email

Chat now

Share With :

Description

Features

Parameters

Inquiry

Description

Ring Die Feed Pellet Mill( Feed Pellet Machine/Pellet Press) SZLH350

SZLH series feed pellet mill( Feed Pellet Machine/Pellet Press) is high precision gear drive equipment, with 304 stainless steel conditioner, with frequency speed control, uses Switzerland “SKF” high-quality bearing, ensures high-efficiency, stable, and low noise drive, can work alone with its electric cabinet. With high throughput, low consumption, and mature technology, it's widely used all over the home and abroad market. It is the most important part of the 5t/h feed pellet production line.

Efficient

Stable

low noise

High Yield

Low consumption

Mature Technology

Detailed instructions for SZLH350 animal feed pellet making machine

For the machine, raw material can be corn, wheat, and other grains, grass also ok.

If the raw material is powder, can be made into pellets directly.

If the raw material is particle size, first, we need to crush them to powder less than 3mm powders.

And there are also some requests for raw material moisture, it is better if less than 30%.

If you want to make different size pellets, the size, generally we mean the diameter of the pellets, you can buy several different size ring dies.

The machine can make pellets for poultry, cow, cattle, pig, chickens, and so on.

Application: for making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock, and poultry feed.Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellets, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.

After installation and adjustment, we will train our customer's work how to operate;

Training workers on how to maintain and protect

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintains)

Our company after-sales department will call you at regular intervals, ask if maintenance and give advice.

Features

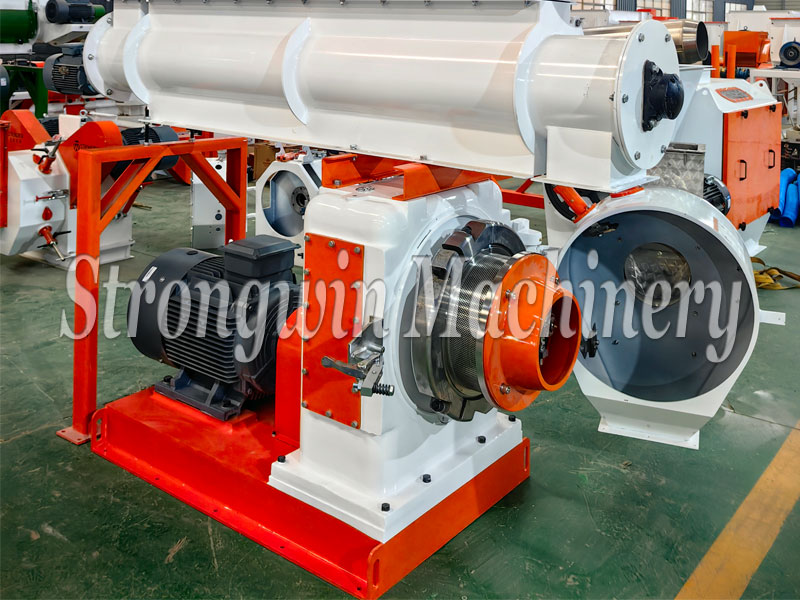

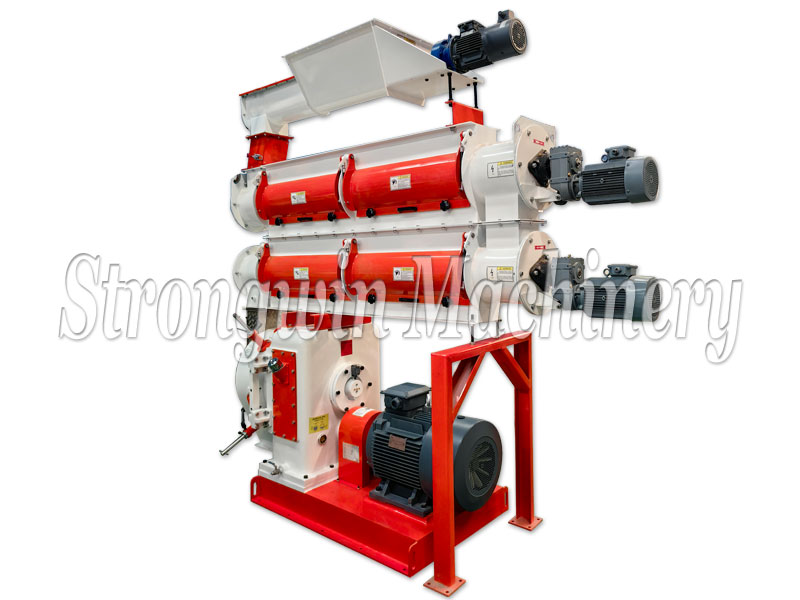

Feed Pellet Mill Firm Structure SZLH350 feed pellet machinery

Machine model: America CPM

Electric motor: Germany SIEMENS

Pellet machine bearing: Switzerland SKF

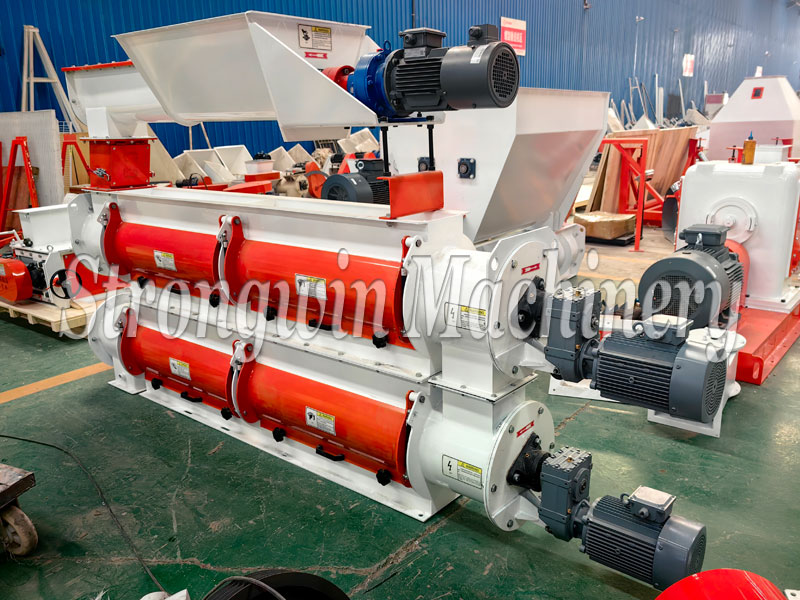

Full 304 stainless steel conditioner, ensures the high quality of pellet feed.

We can customize double or three-layer conditioners for clients.

Super quality of Henan Strongwin Feed Pellet Mill

The material thickness of the main equipment is more than the feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increased by 3-5%.

Parameters

Model	SZLH350
Main motor power	55kw
Conditioner power	2.2kw
Feeder power	1.5kw
Ring die diameter	350mm
Capacity	2-6t/h
Finished pellet size	1.5-12mm
Price	Contact Strongwin to Get Details and Latest Price
