              SZLH250 Feed Pellet Line (Without Crumbler) 1.5-2 t/h

              Model
              Feed Pellet Manufacturing Line
              Capacity
              1-2t/h
              Type
              Fully automatic and semi-automatic
              Application
              For producing poultry feed pellet, such as chicken,duck,bird,etc.
              Pellet forming rate
              98%
              Main Equipments
              Feed Crusher,Feed Mixer,Feed Pellet Mill
              Share With :
              Description
              Features
              Parameters
              Inquiry

              Description

              Feed Pellet Production Line (Including Crumbler)

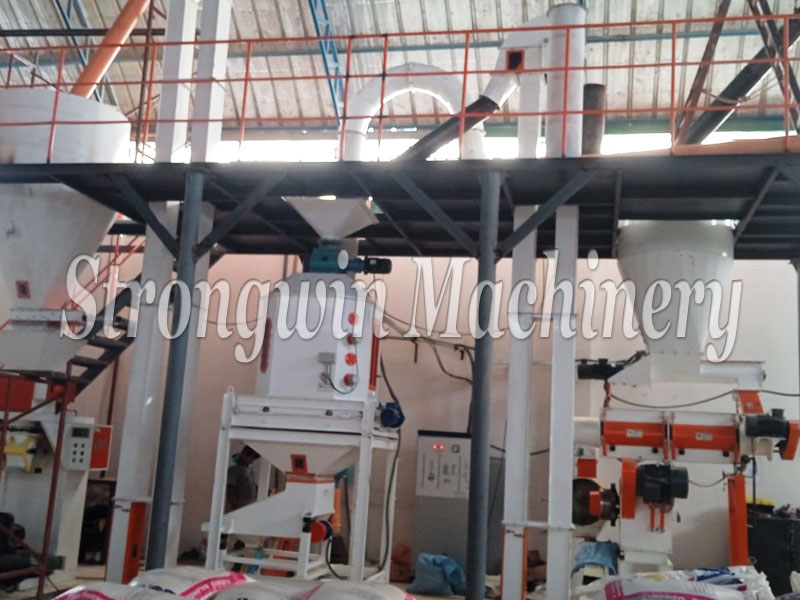

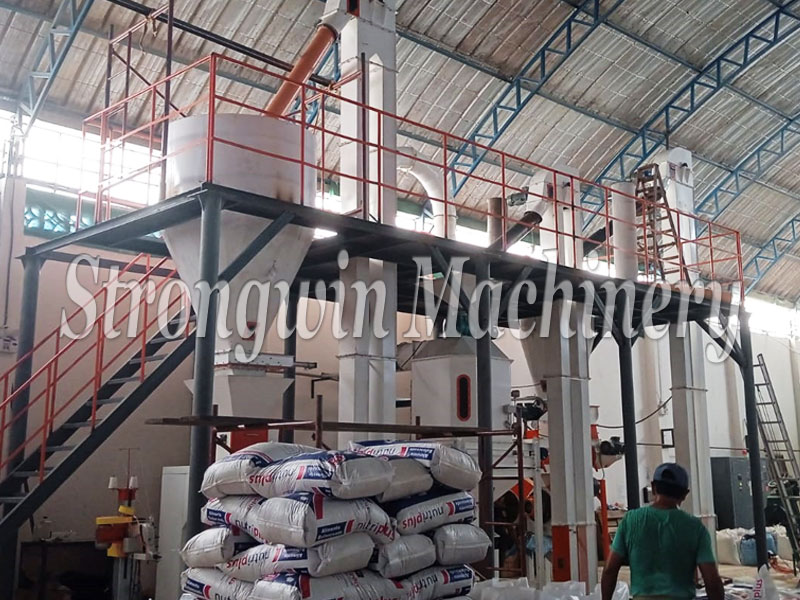

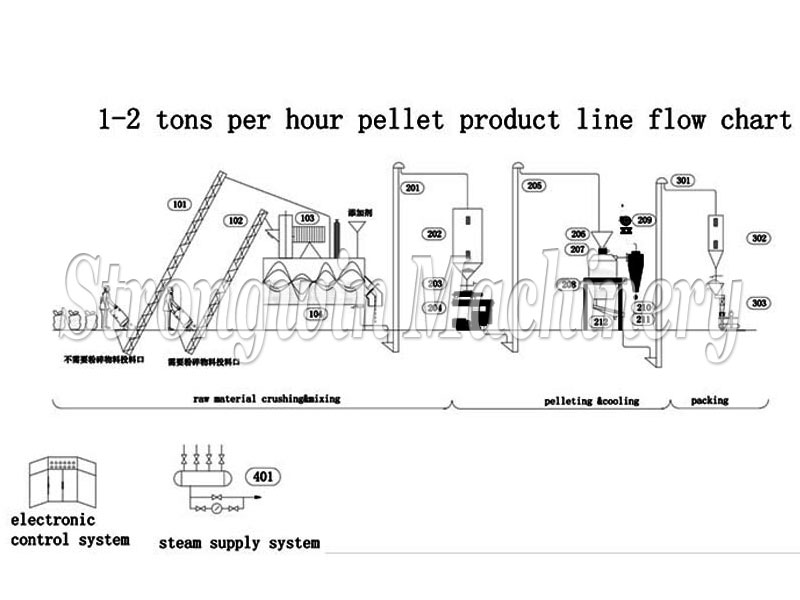

              Feed poultry feed production plant contains a crusher, mixer, pellet machine, cooler, crumbler, screener, silos packing machine and conveyors etc. We will design the full pellet line Flow chart according to your raw materials dimension and specific requirement.
              Profitable
              Small Scale
              Efficient
              Low Noise
              Low Consumption
              Stable
              1-2 t/h Feed Pellet Line (Without Crumbler)

              Hammer Crusher & Mixer: Adopts regrinding crushing technology, widens the screen in 360° the materials can be crushed on average. The coefficient of variation is less than 5%, the mixing time is 5 minutes, then the materials can be discharged from one side. There is no dead corner when mixing, and this machine is easy to maintain.

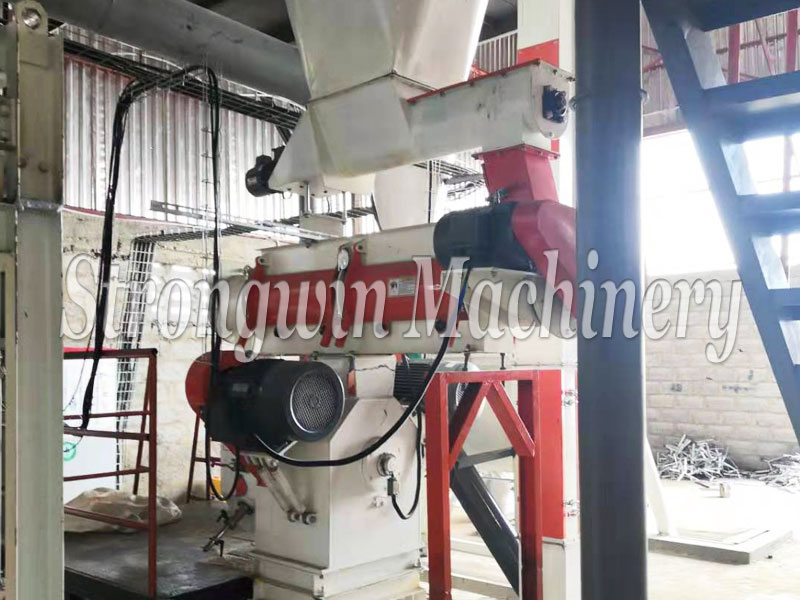

              Feed Pellet Machine: Good quality ting die, stainless steel conditioner, reliable working, adopts double motors driving, over-loading protection.
              Feed Pellet Cooling & Screening Process: It can decrease the temperature and moisture of the feed pellets, preparing for the following processes. After the screening, you can get qualified feed pellets without fine powder.
              Packing Process: Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.
              Application

              For making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock, and poultry feed.Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellets, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.
              A

              After installation and adjustment, we will train our customer's work how to operate;
              B

              Training worker how to maintain and protect
              C

              According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintains)
              D

              Our company after-sale department will call you at regular intervals, ask if maintain and give advice.

              Features

              1-2 t/h Feed Pellet Line (Without Crumbler)  Features

              1

              Widely applied product with mature technology.
              2

              The replacement of the ring die mold is very easy.
              3

              Lower manpower requirements, less time cost
              4

              All processes can be CUSTOMIZED
              5

              Visibility to viewing the material during pelleting is the best way to fix problems


              Super quality of Henan Strongwin Feed Pellet Mill



              Material thickness of main equipment is more than feed machinery standard 2mm;
              The weight is heavier than feed machinery by 20%.
              Output higher 20%;
              The feed rate of return increases by 3-5%.

              Parameters

              Technical Parameters of main equipments for feed mill plant
              Item Name Type Power (KW)
              Part 1.Raw material receiving& crushing system&mixing system
              1-03 Crusher SFSP20 15
              1-04 Mixer SHW1.0 7.5
              Part 2.pelleting system
              2-03 Feed pellet machine(matched with site control cabinet) SZLH250 24.95
              Part 3 . cooling system
              3-04 Counter-flow cooler SKLN11×11 0.8
              3-08 Vibrating screener SFJZ60*1d 0.4
              Part 4. packing system
              4-05 Packing scale DCS50 2.2
              4-07 Boiler 0.3t/h
              Contact Us to Get Complete solution of Feed Production Plant
