2TPH Feed Extrusion Line for Floating Fish Feed And Sinking Fish Feed

Model

SW-95-II Fish Feed Production Line

Capacity

2-2.5TPH

Type

Automatic or semi-automatic

Application

For producing aquatic feed, such as fish feed, shrimp feed, etc.

Feed Shape

produce hundreds of shapes by changing moulds

Fish Feed Size

0.9-15mm

Send Email

Chat now

Share With :

Description

Features

Parameters

Inquiry

Description

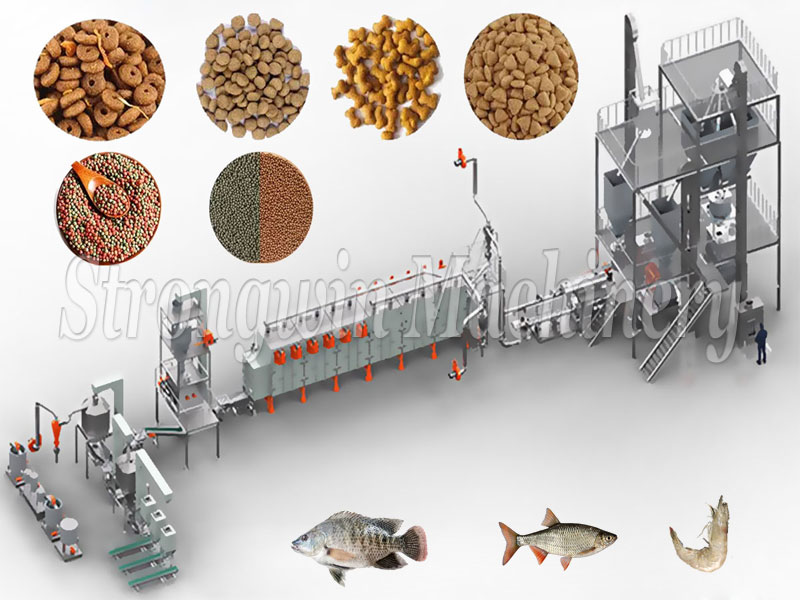

Sinking and Floating Fish Feed Production Line

The aquatic feed production line takes flour, corn meal, soybean meal, meat meal, fish meal, bone meal, etc. as raw materials, and uses the automatic mixing system to achieve full automatic and scientific mixing. The twin-screw extruder extrudes various shapes, and then dries and sprays to produce formula pet food with various shapes, balanced nutrition, and good palatability; Twin screw extrusion technology is used to produce pet food, which can retain the nutritional components in the formula raw materials intact, is easy to digest and absorb, and the formula shape is easy to change; Optimized configuration of the entire production line, high degree of automation, precise control of the production process, stable product quality, high production efficiency, and hygiene and environmental protection; We offer a variety of production lines with different configurations and yields for producing dog food/cat food/bird food/fish food/aquatic feed for you to choose from!

Efficient

Stable

Low Consumption

Mature Technology

Profitable

Easy Maintenance

Advantage of Fish Feed Production Plant

All fish food equipment are made of stainless steel.

The fish food whole line fully continuous and automatic.

The final fish food shapes and sizes can be various by changing the mould.

different types, flexible configuration, wide range of raw material etc.

easy operation,without leak of powder dust,sanitation,saving energy and easy to add all kinds of raw materials and nutriment.

Application

Floating fish feed plant is applicable to produce feed pellets for pets, ornamental fish, pond-fish, and marine fish, such as catfish, shrimps, crabs etc.

After installation and adjustment, we will train our customers to work how to operate;

Training workers on how to maintain and protect.

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintain

Our company after-sale department will call you at regular intervals, ask if maintain and give advice.

Features

Why to Choose Strongwin Aquatic Feed Production Line?

Advanced technology, high capacity and low energy consumption

The modular structure is convenient for assembly and disassembly, facilitating the shipment and installation.

PLC controlled, alarm device is available. The operation is simple and convenient.

Final pellet shapes and sizes can be varied by changing the mold. For fish and shrimp feed pellets, the floating time in water can be adjusted by the extrusion degree adjustment.

Processing is processed at a high-temperature instantaneous process, greatly reducing the decomposition of nutrients in feed, at the same time improving the protein (through the degeneration of protein) and starch (through starch paste) digestibility, to improve the palatability of the product.

To ensure the quality and capacity, there is a special pressure-increased device. Besides, the electric heating device improves the feed expansion rate.

Super quality of Henan Strongwin Fish Feed Production Plant

Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increases by 3-5%.

Parameters

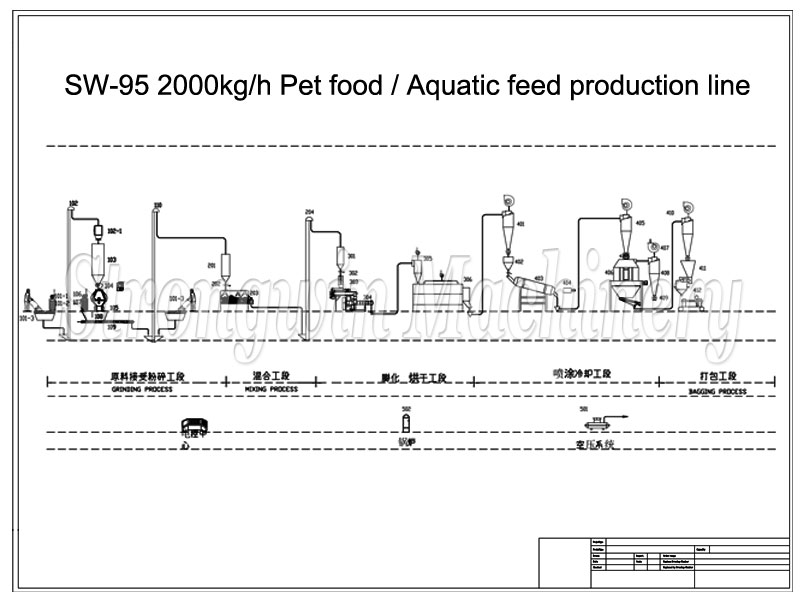

Partial parameters of SW-95 2000kg/h Aquatic feed production line
No.	Product name	Model	Powder(kw)
1. Raw material receiving/crushing and mixing section
101-2	Pulse dust collector	TBLFa.20	-
102	Bucket Elevator	TDTG26/18	2.20
105	Feed Hammer Mill	SFSP66-60	55.00
203	Feed Mixer	LHY2.0	15.00
2. Extrusion and drying process

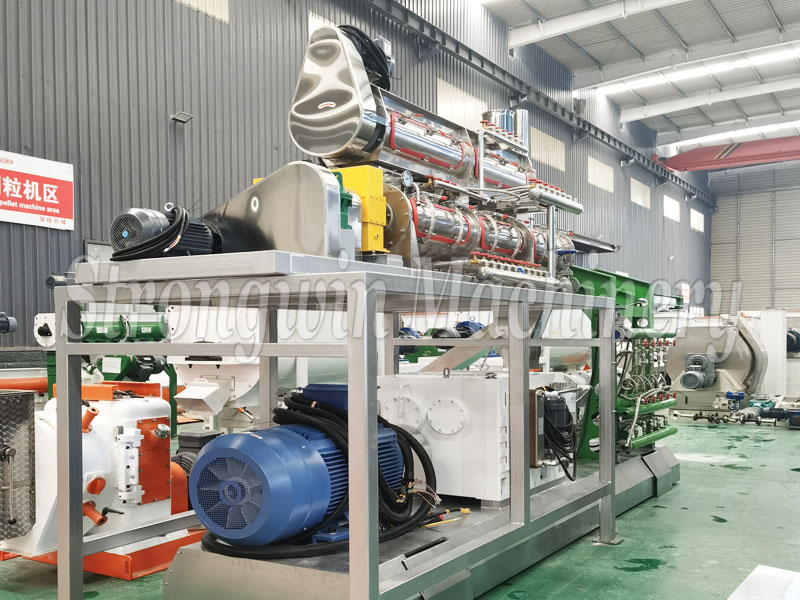

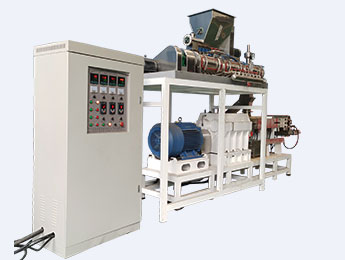

304	Feed Extruder Machine	SW-95-II	114.50

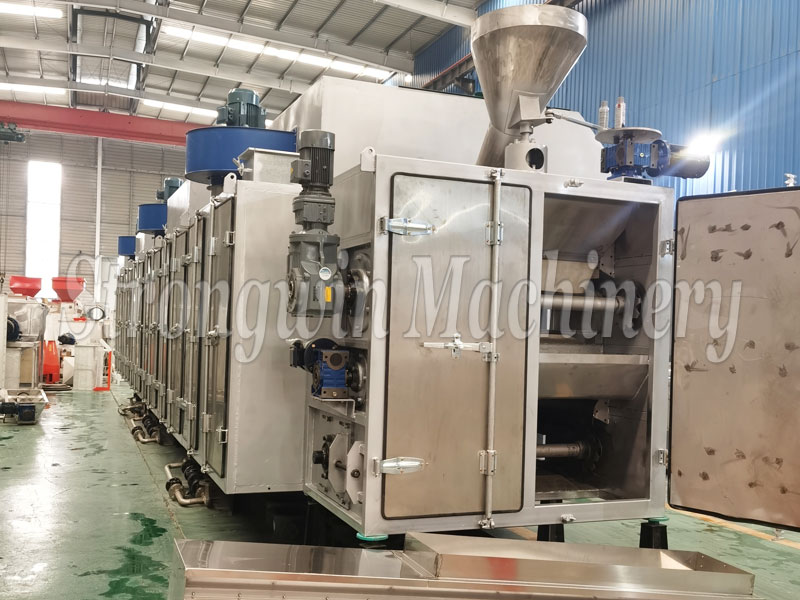

306	Dryer	GHB-14000x2	37
3. Spraying, cooling and packaging section
403	Spraying machine		12.65
406	Cooler	SLNF1.5
409	Packaging machine	BCQ-50	2.20
501	Air compressor system
502	Boiler with linked system	1T/H	5.50
Total Price	Contact Us to Get Complete solution of Feed Production Plant
